Evaluating with Spectral¶

Overview¶

Spectral is the evaluation platform of Principled Intelligence: it holds many conversations with a chatbot and judges them. With the spectral add-on the studio connects the atom you are tuning to a target on Spectral, so an evaluation runs against that atom, with the orbitals as they are in the session.

The studio does two things: it answers Spectral's requests with turns of the atom, and it counts what every orbital decided on them. Evaluations are launched on Spectral, and their results are read there.

Key Features¶

• One click from the page — a ghost on the stage and a chip in the header open the Spectral card, where you connect, test and disconnect.
• Real turns — each request from Spectral runs the atom as a user's message would: orbitals, nucleus, tools.
• The session's orbitals — a request meets the orbitals as you tuned them, and the next request meets a change you make.
• Counts, not text — for each orbital, how many times it allowed, blocked, answered or failed. No text of the requests is shown or written.
• An add-on — without the spectral extra the studio is the same as before: no ghost, no chip, nothing asked from the server.

Before You Start¶

You need a target on Spectral of the Internal kind, and its key. Spectral shows the key once, when the target is saved.

Install the spectral extra together with the extra of the atom's framework. It brings the studio with it:

pip install 'chatomon[spectral,pydantic-ai]'

Put the key in an environment variable in the shell the studio starts from. The studio looks for SPECTRAL_BRIDGE_API_KEY unless you name another variable in the card:

export SPECTRAL_BRIDGE_API_KEY='the key of your target'
chatomon studio speedypack.app:atom

A target can use either protocol Spectral offers, Responses or Chat Completions: the studio answers both. They differ in who keeps the conversation: see Conversations.

Connecting¶

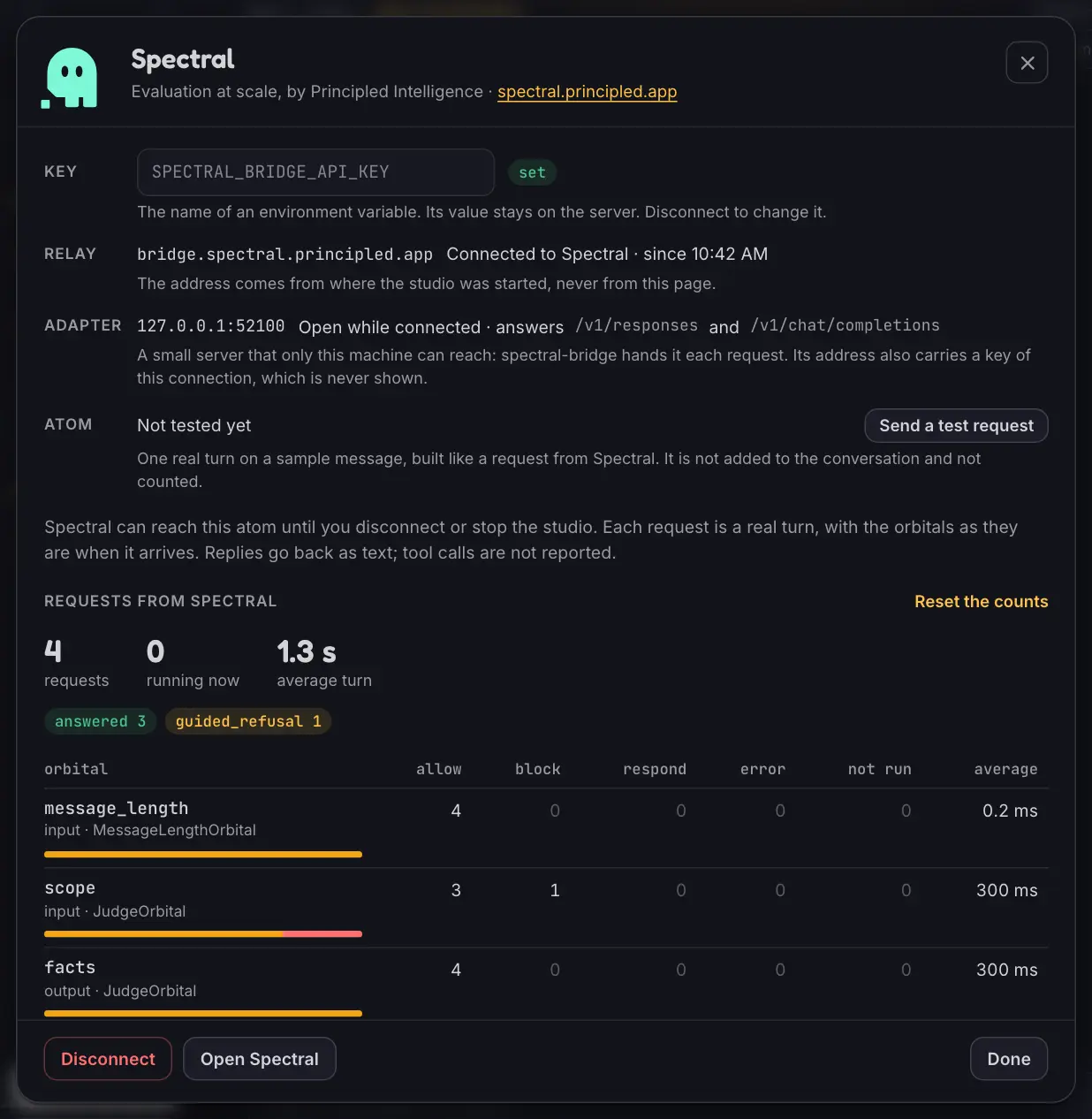

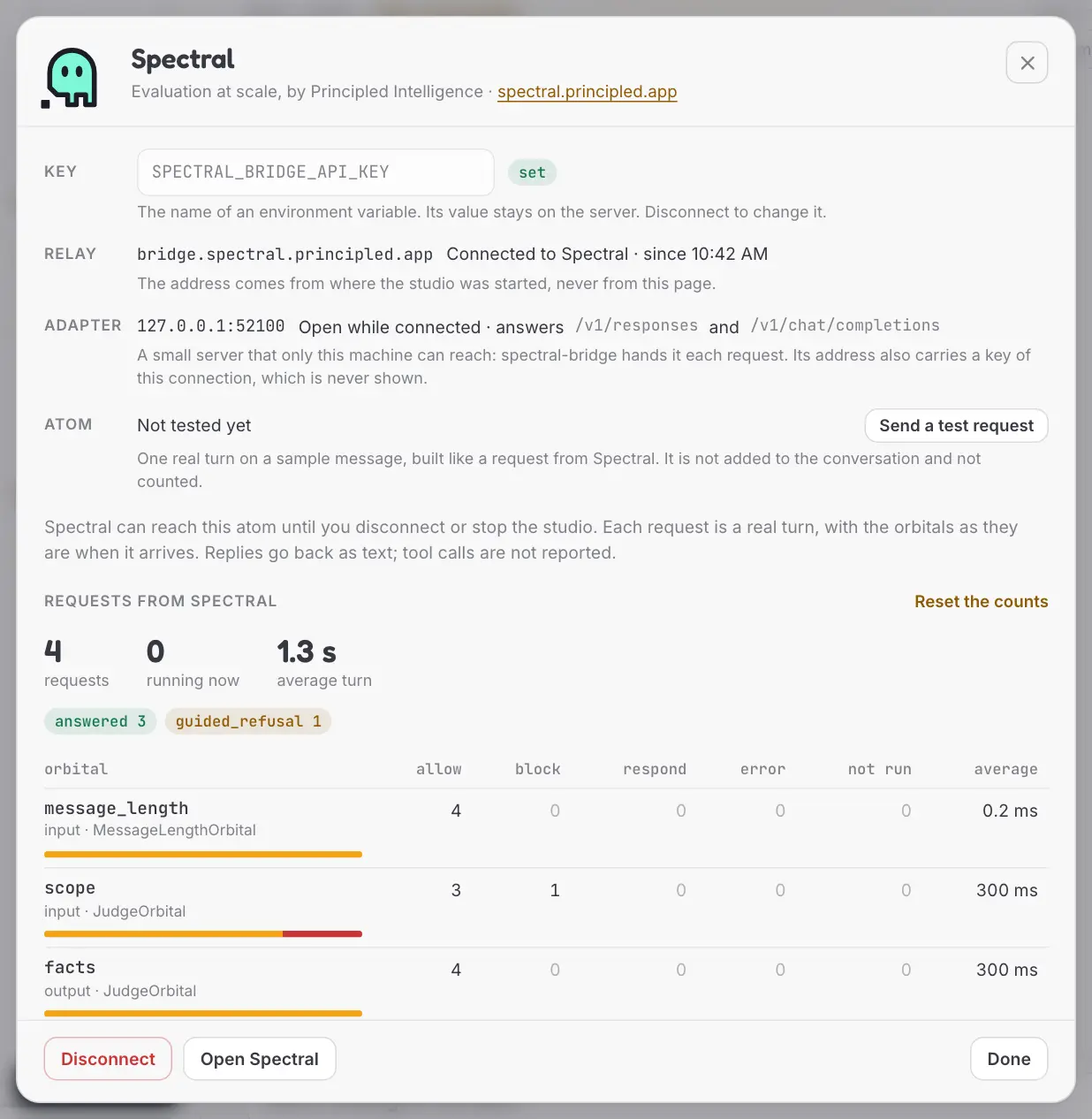

Open the Spectral card from the ghost on the stage or from the Spectral chip in the header. The card has four rows, in the order a request travels.

Before you connect, the card lists what there is to know about your atom, such as a place the turns write to. The notes are about the atom as it is now: after a reload of your code, they are the new atom's.

Connect opens the connection. Then, on Spectral, open your target, press Test connection and launch an evaluation. Disconnect closes the connection and lets the requests that are running finish. Stopping the studio closes it too.

The terminal writes a line when the connection opens and when it ends, and one for each request: how its turn ended, which orbital stopped it, and how long it took. Like the counts, the line never holds the text of the request or of the reply.

The ghost and the chip say where the connection is.

Ghost		Chip	When
sleep		Spectral	Not connected
connect		connecting, disconnecting	The connection is opening, or closing while the last requests finish
orbit		connected	Spectral can reach the atom: the ghost goes around it
evaluate		N requests	Requests are arriving: the ghost goes faster and leaves a trail
lost		reconnecting	The connection fell and is being tried again
refused		key refused, upgrade needed, stopped	Spectral refused the connection, which is not tried again

The ghost goes around the atom only while Spectral can reach it. During a turn you send yourself it waits in its corner: the stage is the atom's.

What Happens to a Request¶

sequenceDiagram
    participant S as Spectral
    participant R as Spectral's relay
    participant B as spectral-bridge, in the studio
    participant A as Adapter on 127.0.0.1
    participant T as A copy of your atom
    B->>R: connects with the key of the target
    S->>R: a message of the evaluation
    R->>B: the request
    B->>A: the request
    A->>T: one turn
    T-->>A: the reply, or the reply of an orbital
    A-->>B: the answer
    B-->>R: the answer
    R-->>S: the answer

The studio connects outwards to Spectral's relay: nothing on your machine listens to the network. The relay hands each request to spectral-bridge, which runs inside the studio and passes it to a small local server, the adapter.

Each request is one real turn. The models are called, the tools run, and a turn costs what a turn costs, as many times as the evaluation asks. Up to four turns run at the same time; the others wait.

The turn runs on a copy of your atom, built with the orbitals as they are in the session when the request arrives. Turn an orbital off and the next request runs without it. A request that arrives while the code is being reloaded waits for the reload.

Spectral gets what a user would get: the reply, or the reply of the orbital that blocked the message. It gets text only: the tools the atom called are not reported.

These turns are not in the conversation of the page and have no report to open. The stage says Answering Spectral while they arrive.

Conversations¶

A target on the Responses protocol sends the first message of a conversation, and then each new message with the name of the answer before it. So the studio keeps the conversations Spectral can continue, in the form the atom's framework keeps them. A message an orbital blocked stays out of the conversation, replaced by the atom's placeholder, as where your application keeps the conversation itself.

These conversations are held in memory, only while the connection is open. They are never shown, logged or written, and they are forgotten when you disconnect.

There is room for the conversations of a thousand answers, and for about 32 million characters in all. When the room ends, the studio first forgets the answers that a later one already continued, then the oldest. A conversation that grows beyond about 4 million characters is not kept at all. A request that continues an answer that is no longer kept is answered with an error.

A target on the Chat Completions protocol sends the whole conversation with every message, and the studio keeps nothing. There a message an orbital blocked comes back as it was written, in the history of the next turn: it is what happens wherever the client keeps the conversation.

Reading the Counts¶

The card counts the requests of the connection. The counts start again when you connect and with Reset the counts, and they stay on the card after you disconnect.

An output orbital runs once for every attempt of the nucleus, so its numbers can add up to more than the requests.

Two notes can appear under the table. One says that the orbitals changed while the counts were running, so the numbers mix more than one configuration: reset the counts to start clean. The other says that some requests got no turn, because Spectral sent something the studio does not read or continued a conversation that is no longer kept.

What Leaves Your Machine¶

The address of the relay comes from the environment the studio was started in: SPECTRAL_BRIDGE_RELAY_URL, or Spectral's own. The page cannot set it, and only a wss:// address is taken.

The adapter listens on 127.0.0.1, on a port the system chooses, and only while the connection is open. Its address carries a key of that connection, which is never shown; the studio hides it in what httpx logs. It refuses requests that come from a page in a browser. Spectral's requests arrive with headers of their own, an Authorization among them: the adapter reads none of them.

A connection can be opened only when the studio listens on this machine. Started on a network address, the card says so and offers no Connect.

The libraries under the add-on log through your logging setup, like any other. With DEBUG on for websockets, that library logs the headers of the connection, the key among them, and the messages. A process that traces httpx records the adapter's address with its key. With no logging set up at all, Python prints the warnings of spectral-bridge in the terminal, such as a line at every Ctrl+C.

Limits¶

• Text only. Spectral judges what the atom says. Evaluating the tools it calls is not supported.
• Results stay on Spectral. The studio shows counts; conversations and verdicts are read on Spectral.
• Changes mix the counts. An evaluation that runs while you change orbitals is an evaluation of more than one atom. The card says when it happened.
• A full quota is a failed request. When the model refuses a call, the request is answered with an error that names the class of the exception, and counted as failed. Retries are set on the model, in your code.
• This machine only. A studio started on a network address does not connect.
• What a turn can rely on depends on the framework. The limits of Frameworks in the Studio hold here too: dependencies, runtime contexts and turns that wait for an answer.

Troubleshooting¶

Key Components¶

Related Documentation¶

• Studio — installing, starting, content and security
• Reading the Screen — the stage the ghost shares with the atom
• Frameworks in the Studio — what a turn can rely on with each connector
• Observability and Audit — final actions and what an orbital's result holds

Last Updated: October 2026 Status: Implemented
